SucceBuy Air Compressor Heads Piston Twin Cylinder Single Stage 2.2KW 375L/MIN 12CFM 11 Bar 159.5PSI 1300RPM for Chemical

SucceBuy Air Compressor Heads Piston Twin Cylinder Single Stage 2.2KW 375L/MIN 12CFM 11 Bar 159.5PSI 1300RPM for Chemical

$133.99 USD
$0.00 USD $133.99 USD
Sale Sold out
Shipping calculated at checkout.
Ships From

SPECIFICATIONS

Brand Name: NONE

Capacity: 375 L/MIN / 12 CFM

Certification: NONE,CE

Cylinder: 2 Cylinder

High-concerned chemical: None

Horsepower: 3HP

Max. Rotation: 1300 RPM

Origin: Mainland China

Power: 2.2 KW

Power Source: Electric

Power Type: Electric

Pressure Max.: 11 bar / 159.5 psi

Pump Type: Air Compressor Pump

Sound Pressure Level LWA: 55 dB

Stages: Single Stage

Type: Piston Compressor

Use: Chemical, Electronic, Textile, Food Processing


Product Description

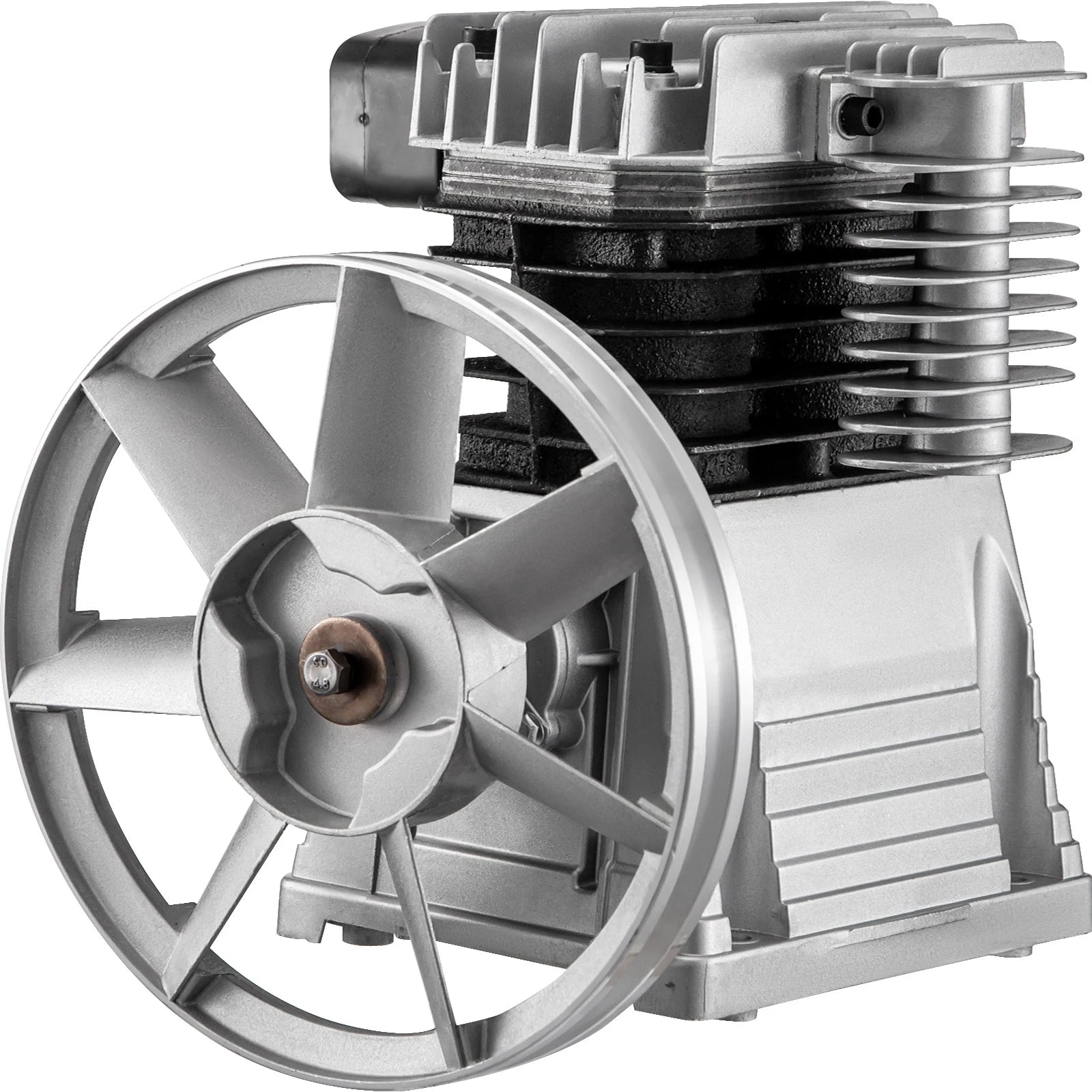

SucceBuy 2.2KW Air Compressor Heads
Efficient Power & Durable Design
Crafted with an aluminum shell and featuring cast cylinder sleeves, our SucceBuy air compressor heads ensure excellent heat dissipation and long-term durability. Designed for easy maintenance with an oil viewing window and belt-driven operation, this 3hp compressor pump is ideal for replacing or expanding existing compressed air systems in agricultural, industrial, and mechanical applications.

  • Aluminum Shell for Heat Dissipation

  • Oil Viewing Window for Maintenance

  • Versatile Application in Farming and Industry

  • Durable Double-Cylinder Design


Key Features
Belt Drive System
Enhanced strength and wear resistance through heat-treated materials and a belt pulley drive design, delivering excellent compression performance and stable operation.

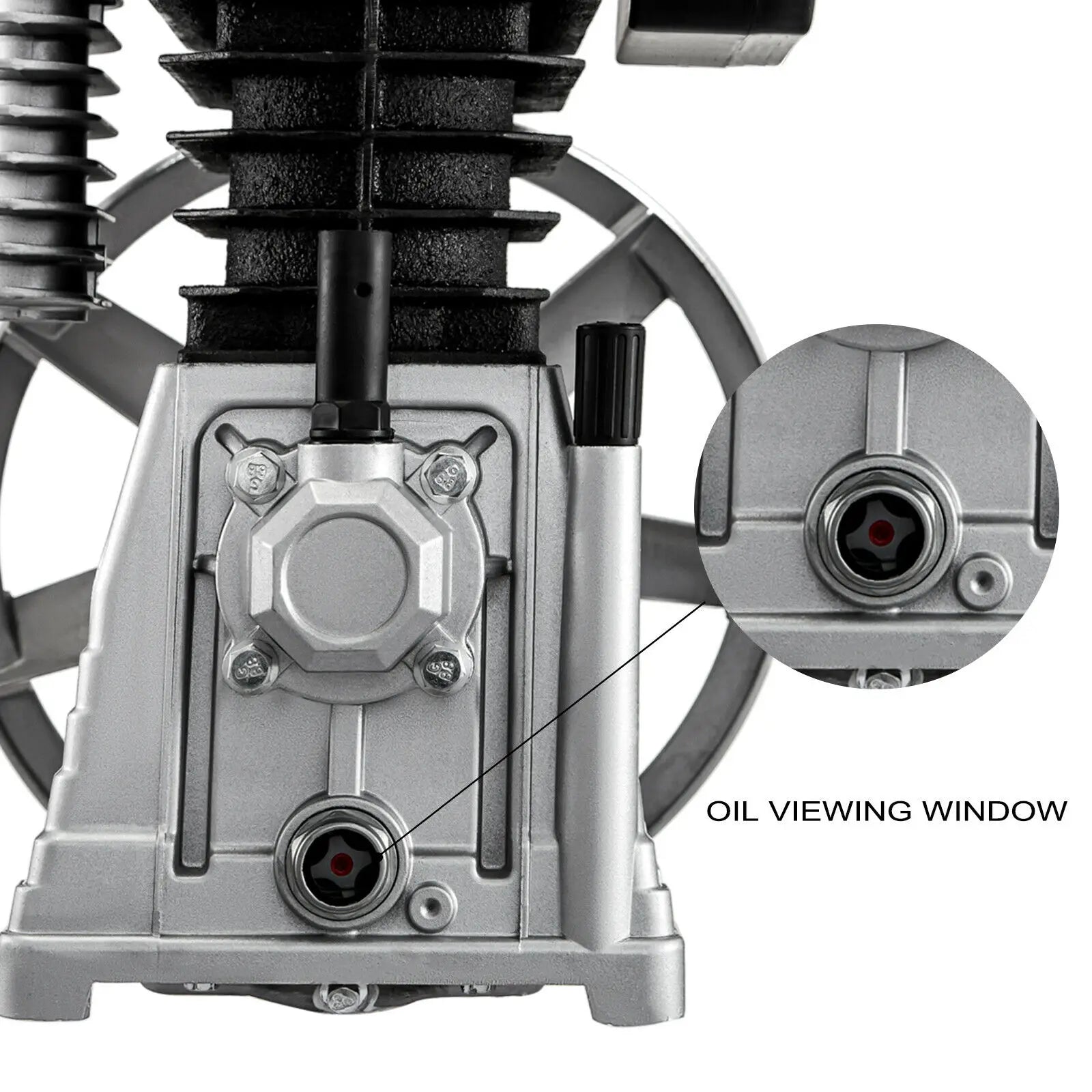

Oil Monitoring System
Equipped with an oil viewing window and drain plug for real-time oil level monitoring, providing convenient maintenance and operational insight.
High-Quality Components
Includes tapered roller bearings, needle roller bearing piston rings, and high-capacity control elements, along with an aluminum head and valve plate for effective heat dissipation.
Versatile Application
Suitable for replacing equipment or expanding compressed air systems in chemical, electronic, textile, food processing, and other industries requiring reliable compressed air solutions.

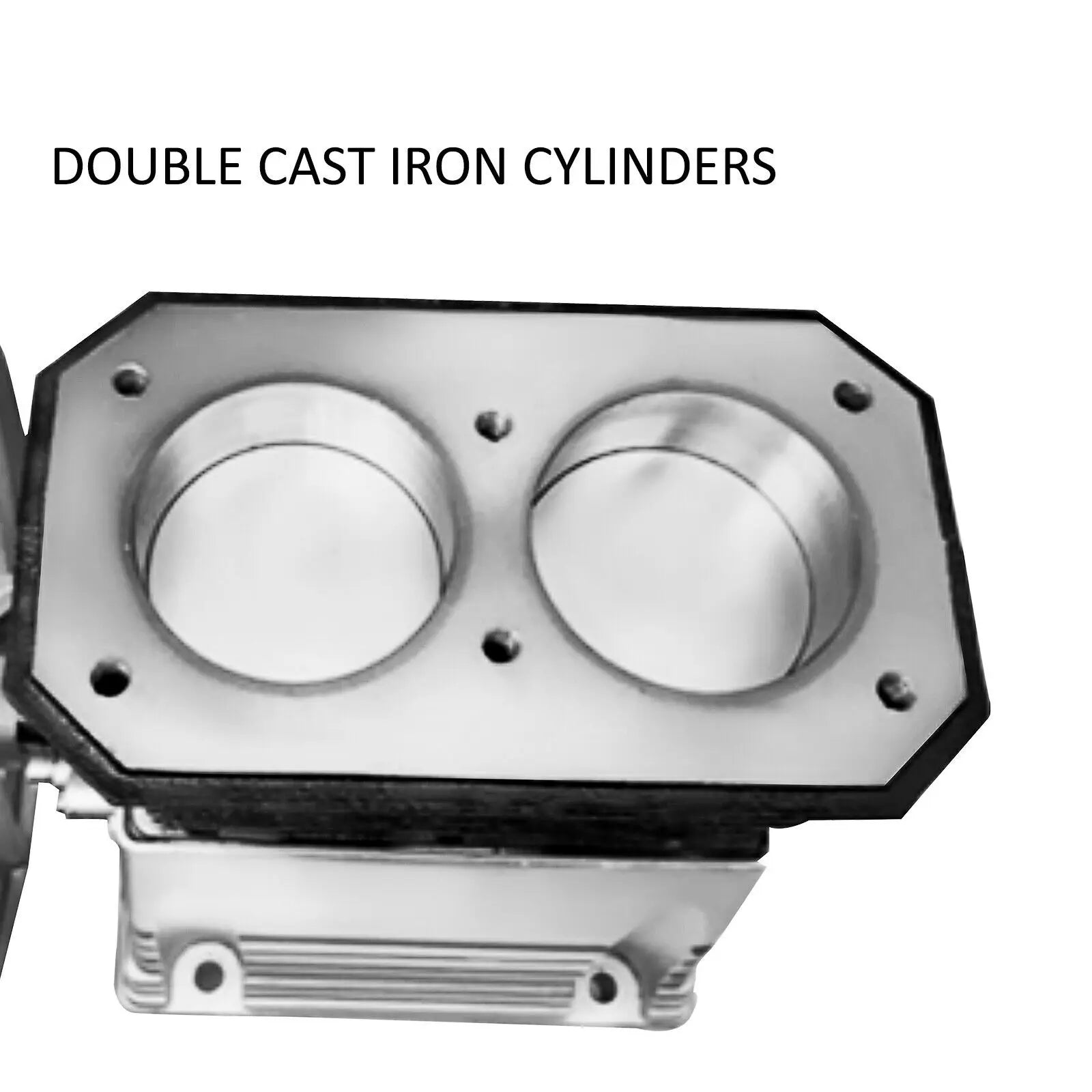

Dual Cast Iron Cylinders
Features conjoined twin-cylinders for minimal vibration, low noise, and efficient heat dissipation, ensuring reliable vertical operation with easy maintenance.
Robust Aluminum Construction
Crafted from durable aluminum with cast-iron cylinders, this 3hp air compressor pump offers strong thermal conductivity, ideal for harsh field environments.
Specifications

  • Type: Piston Compressor

  • Power: 2.2 kw

  • Cylinder: 2 Cylinder

  • Stages: Single Stage

  • Capacity: 375 L/MIN / 12 CFM

  • Sound Pressure Level LWA: 55 dB

  • Pressure Max.: 11 bar / 159.5 psi

  • Max. Rotation: 1300 rpm

  • Dimensions (L x M x H): 7.9" x 6.5" x 12.4" / 20 x 16.5 x 31.5 cm

  • Net Weight: 13.9 kg / 30.6 lbs

  • Lubrication Method: Oil Lubricated Air Compressor

  • Fast Heat Dissipation Design: Large Heat Sink Design

Package Content

  • 1 x Air Compressor Head

Features & Details

  • Versatile Application: Ideal for various uses including interior decoration, powering pneumatic equipment, and equipment repair. Compatible with 3hp electric motors and 6.5hp petrol motors, offering reliable performance across different industries.

  • Robust Construction: Features a heavy aluminum shell and boron cast iron cylinder with a cast cylinder liner, ensuring durability and ease of maintenance for long-term use.

  • Dual-Cylinder Design: Utilizes two cast-iron cylinders and a cylinder head with die-casting technology, providing excellent heat dissipation and ensuring stable and quiet operation.

  • Efficient Operation: Equipped with a high-quality crankshaft connecting rod and a belt pulley drive design for strong wear resistance, smooth operation, and optimal compression performance.

  • Advanced Features: Includes tapered roller bearings, needle bearing piston rings, and control elements with high bearing capacity. The oil viewing window allows real-time monitoring of oil levels, facilitating convenient refueling processes.
