SPECIFICATIONS

Brand Name: HITBOX

Certification: CE

Dimensions: 51x 41x37cm

Function 1: Gasless MIG

Function 2: Gas MIG

Function 3: HF TIG

Function 4: Plasma Cutter

Function 5: Stick

Function 6: Aluminum Welding Machine

Function 7: Spot

Function 8: 2T 4T

HITBOX Model: HBMC270

High-concerned chemical: None

Is Smart Device: no

Model Number: HBMC270

Origin: Mainland China

Use: 6 in 1 Welder

Weight: 16.85kg

【MIG Synergic Welding (Gas/Cored/MIG Pulsed Al)】Range 20-200A, compatible 1kg and 5kg coils. Accepts 0.6/0.8/0.9/1.0mm and 1.0mm aluminum wires. Automatic synergy voltage/current with fine adjustment, ideal for beginners and pros.The dedicated MIG Al mode allows the welding of aluminum (graphite lining required for aluminum, included).

【40A Plasma Cutter】 Clean cuts 6 mm (1/4") at 40A, 3.5 bar (50 PSI), with a recommended cutting speed of 120 mm/min (4.7 in/min) for smooth, precise edges. Maximum cuts up to 1/2" (12mm) at 40A, 3.8 bar (55 PSI). Requires an external air compressor (0.2 m³/min @ 7 bar / 7 CFM @ 100 PSI) and works with all conductive metals including carbon steel, stainless steel, aluminum, copper, etc.

【Spot Welding (MIG Mode Only)】The spot welding function is only available in MIG mode. Once activated, the control knob adjusts the welding time from 0 to 3 seconds, allowing fast, uniform and high quality spot welds, ideal for small parts and thin sheets.

【TIG HF】 15-200A output, compatible with 1.6mm (1/16") and 2.4mm (3/32") tungsten electrode. Ideal for welding most thickness of workpieces with long lasting performance. The contactless HF arc priming ensures reliable ignition and stable welding results, perfect for both beginners and experienced welders.

【Electrode Welding (MMA/Stick)】 20-200A output, compatible with 2mm (5/64"), 2.4mm (3/32") and 3.2mm (1/8") electrodes, ideal for welding carbon steel 1.6-8mm (5/5/8mm) 64"-5" /16") thick. Provides flexible, precise and reliable welding for a wide range of metal thicknesses.

【Other Powerful Functions】Adjustable electronic inductor to control arc stiffness and reduce projection. Wire feed function improves MIG arc priming. 2T/4T modes for flexible control and less fatigue during long sessions. MIG gas pre- and post-flow adjustable from 0-2s (recommended: pre-flow 0.1-0.2s, post-flow 0.3-1s) to protect the melting pool, improve cord quality and prevent porosity.

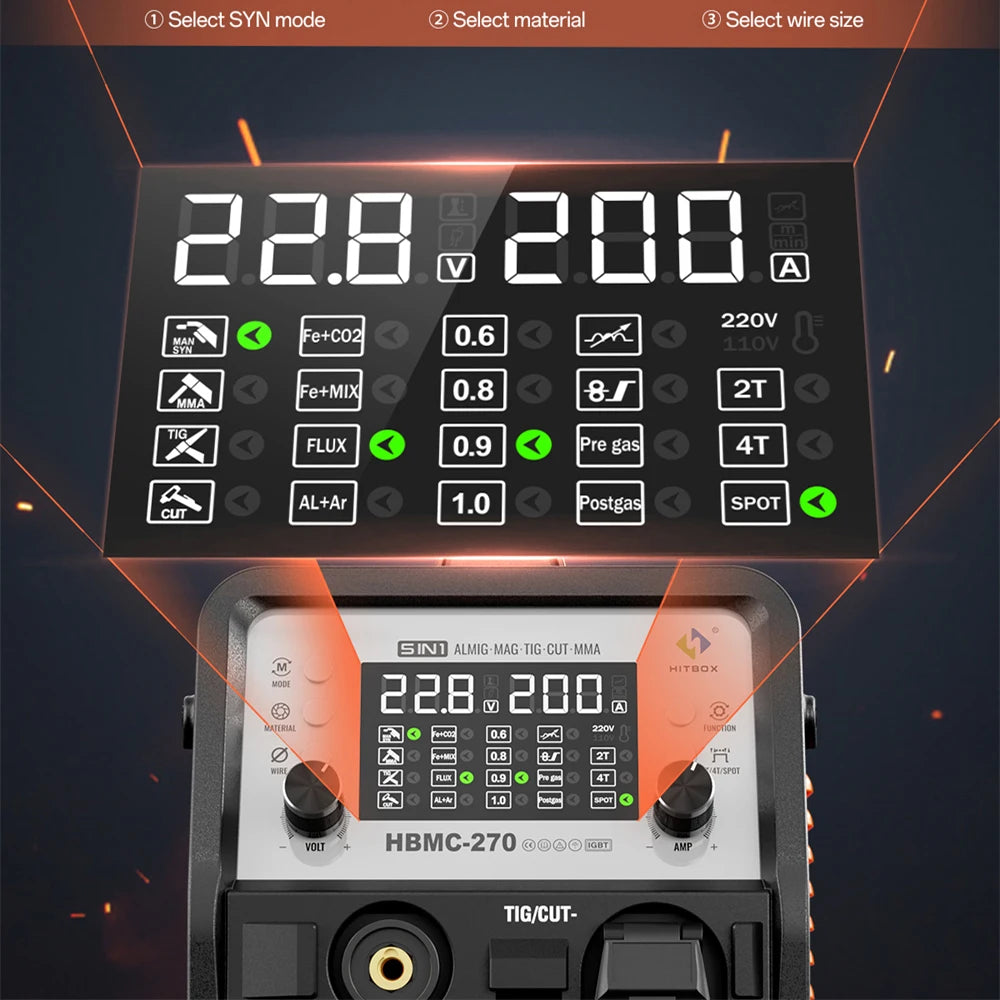

【Large HD Digital Display & Portability】 The large high-definition screen displays more information, allowing you to easily select welding material, wire diameter and other parameters for a user-friendly and intuitive interface and precise welding. Weighs only 10kg with a sturdy handle making it extremely easy to carry.

【Safety & 2 Year Support】Equipped with automatic overcurrent, over-voltage and overheat protections, ensuring safe operation and extended machine life, backed by 2 years of professional and efficient technical support for worry-free use.
