SPECIFICATIONS

Brand Name: Bymaocar

High-concerned chemical: None

Material: Steel PP

Origin: Mainland China

Description

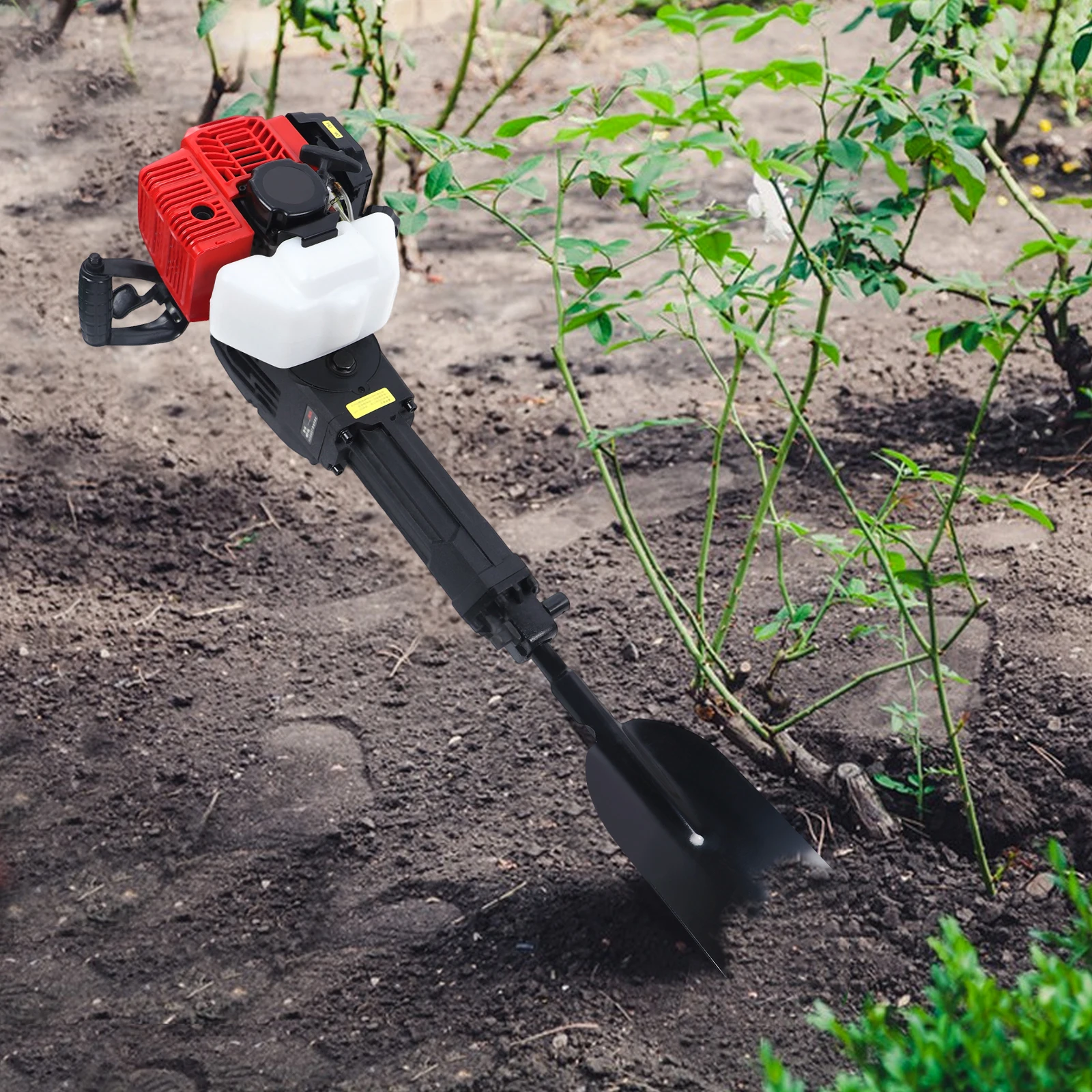

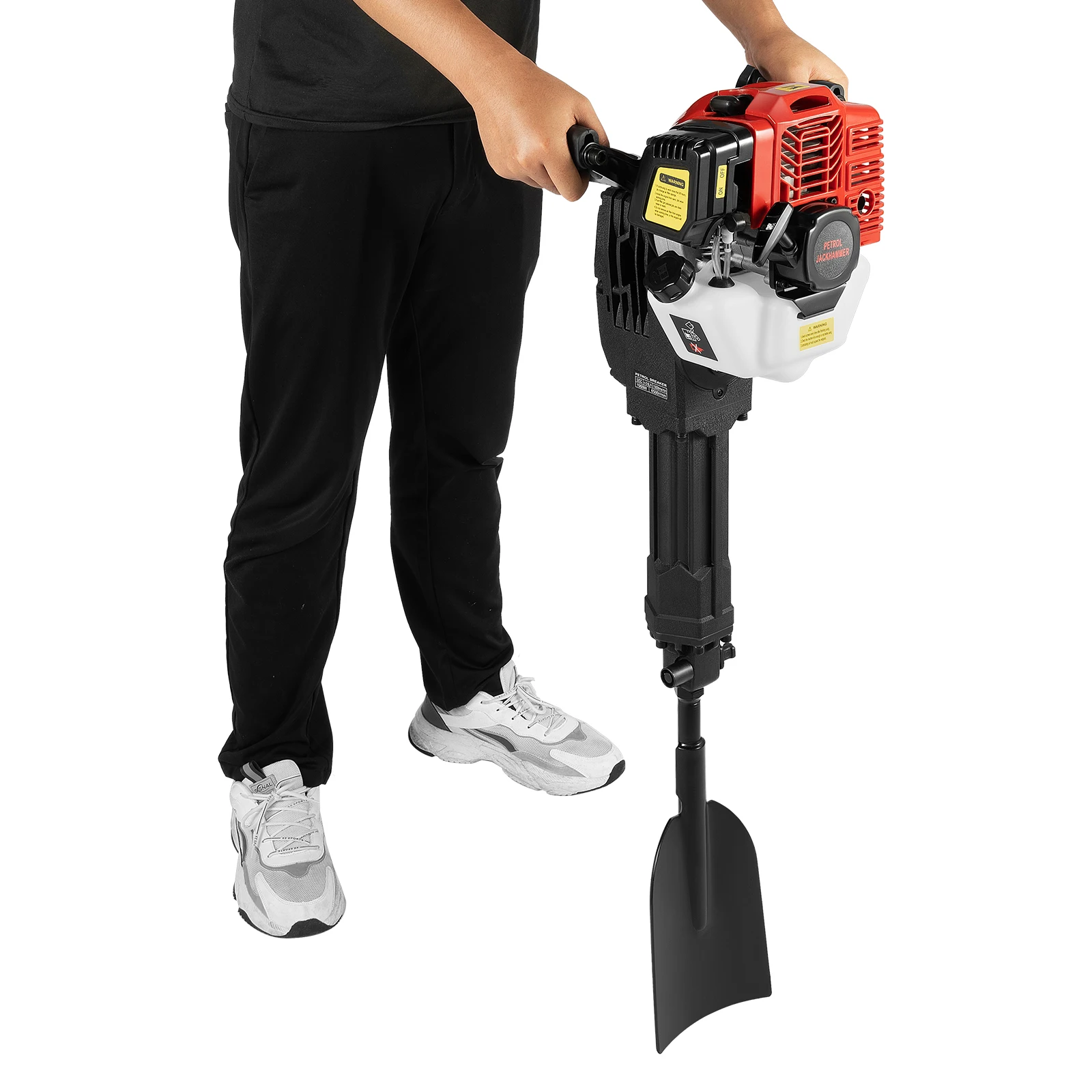

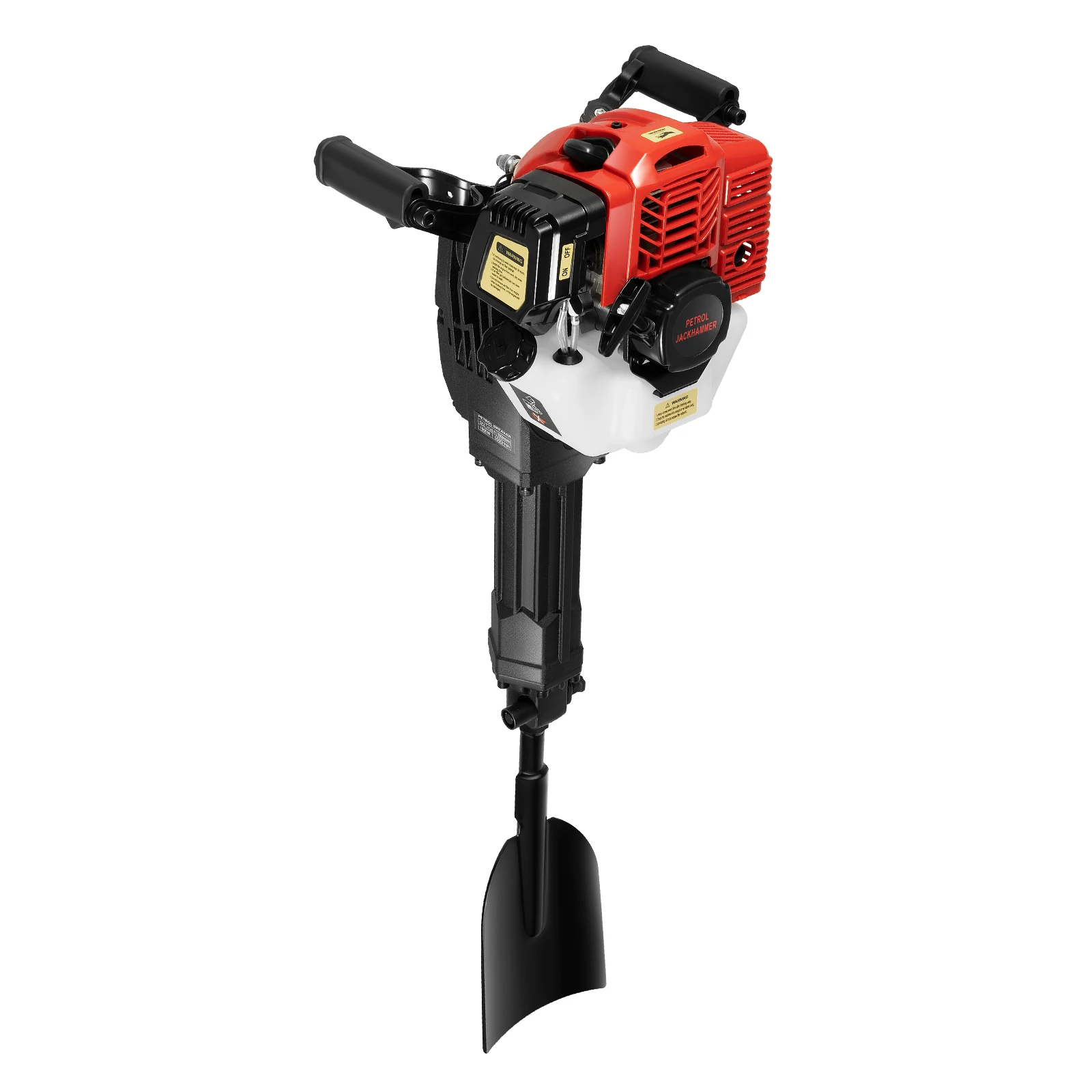

Daily gardening work can be supported with the help of practical tools. This garden tree digger delivers strong 1900W power and a functional shovel, helping users lift plants with ease and cut through roots. It achieves high fuel efficiency to lower unnecessary consumption, acting as a practical gardening device.

Key Features

Multi-Purpose Utility: The broad shovel can dig around tree root balls in soil and trim excess roots, making tree transplanting tasks more manageable.

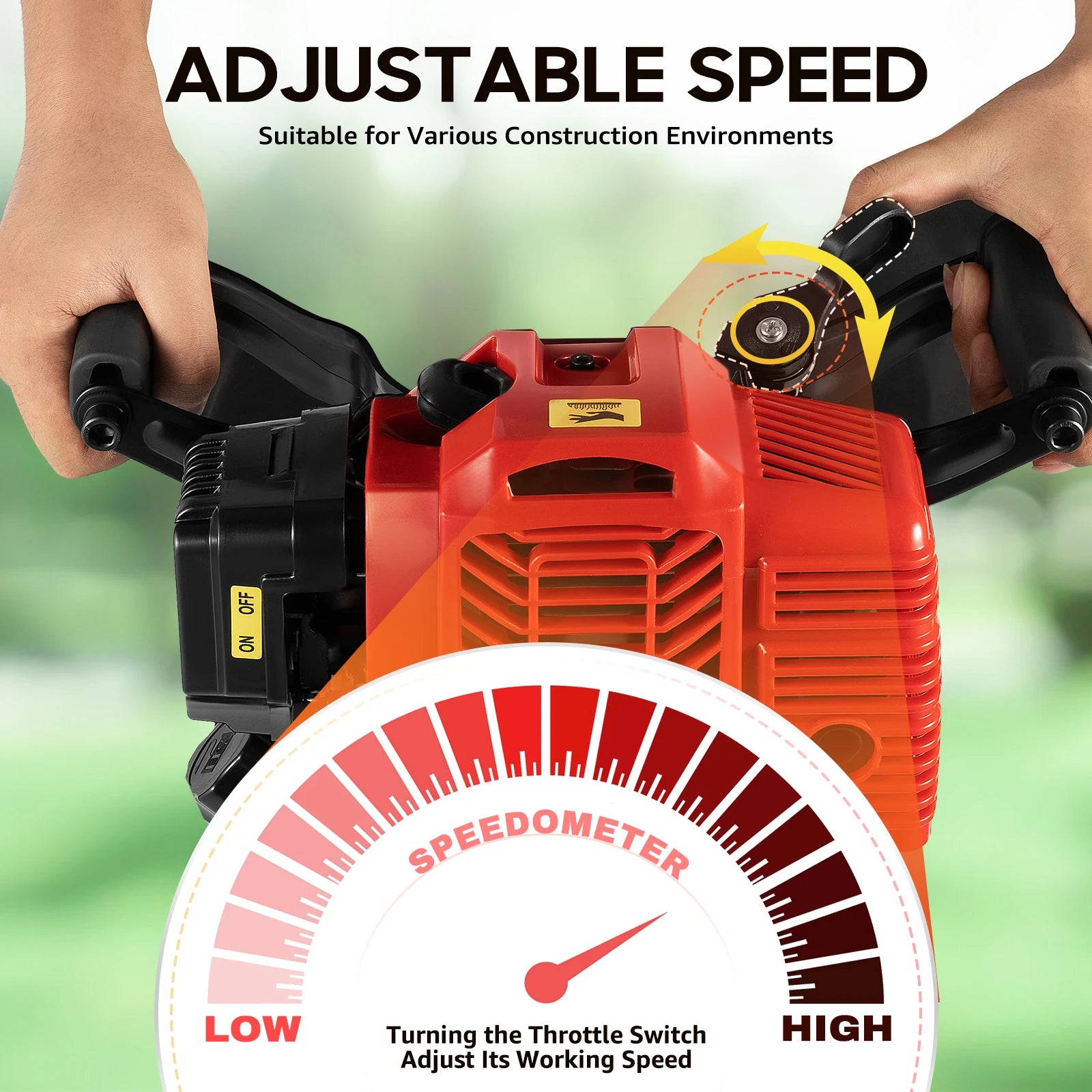

Hassle-free Use: It adopts the hand-pull start, and the throttle switch and flameout switch allow for convenient use. And low failure rate ensures worry-free use.

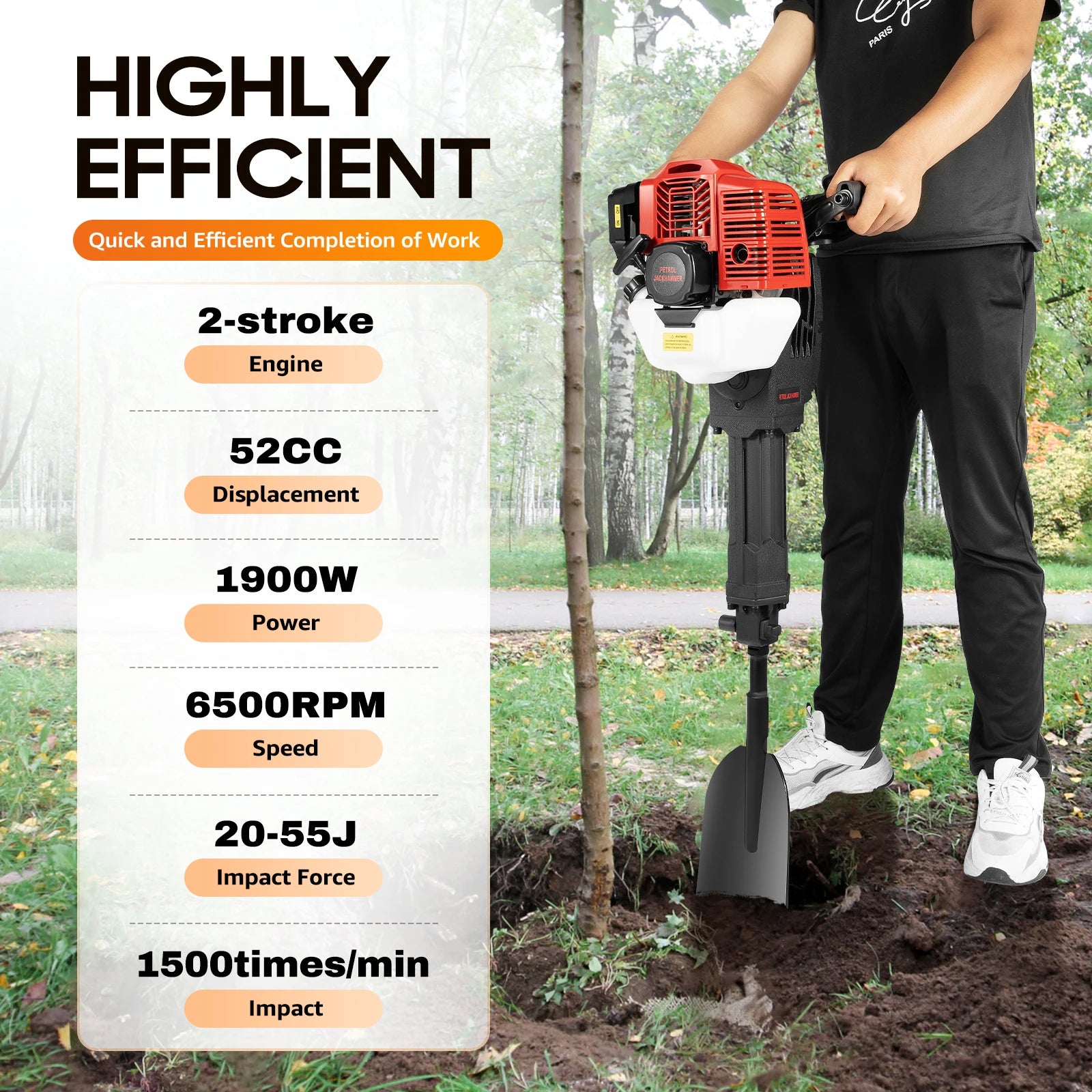

Strong Working Efficiency: The 2-stroke engine offers 1900W power and 3.5N·m torque. It achieves a speed of 6500 rpm and 1500 impacts per minute with 20–55J impact energy, supporting smoother excavation assignments.

Selected Materials: The high-quality steel can resist wear, corrosion, and heat. And the premium PP material is odorless and can resist shock, deformation, and break, ensuring an extended service life.

Money-saving: It can fully burn gasoline during operation, consuming less fuel (≤ 0.15gal/h), bringing you a better affordable user experience.

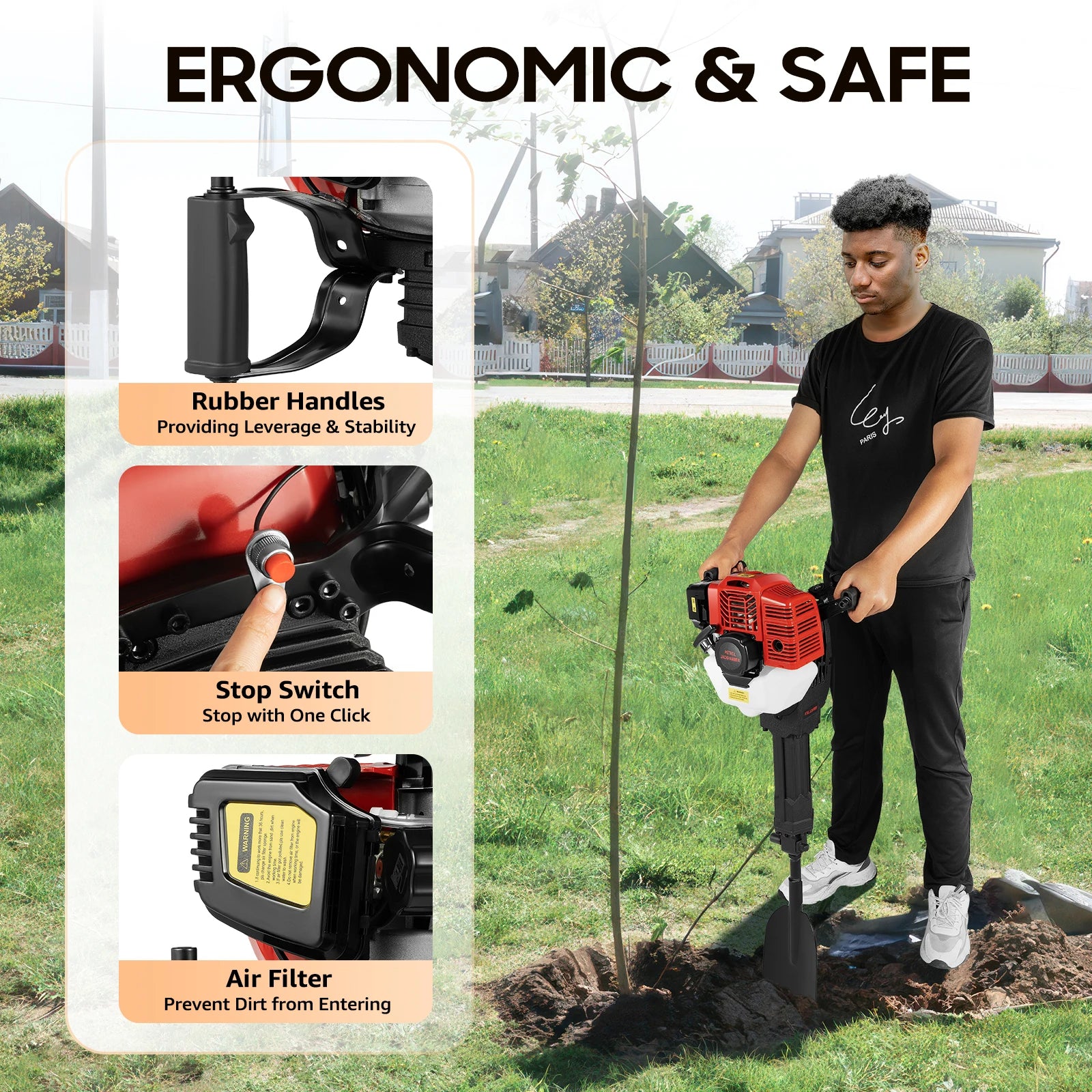

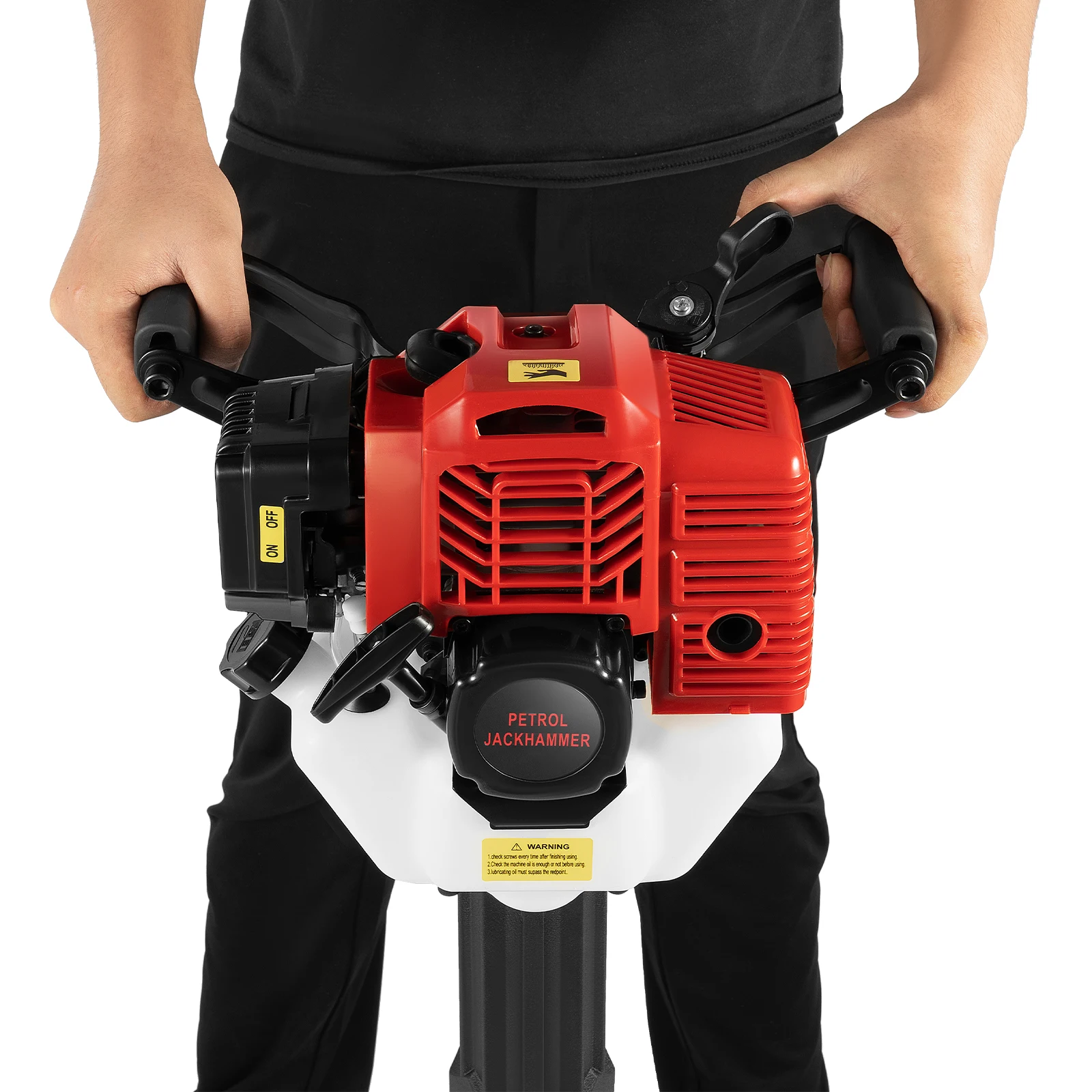

Humanized Handle Structure: The thoughtfully shaped handle delivers comfortable holding experience, enabling long-time use without hand tiredness. The textured surface on the handle improves grip stability.

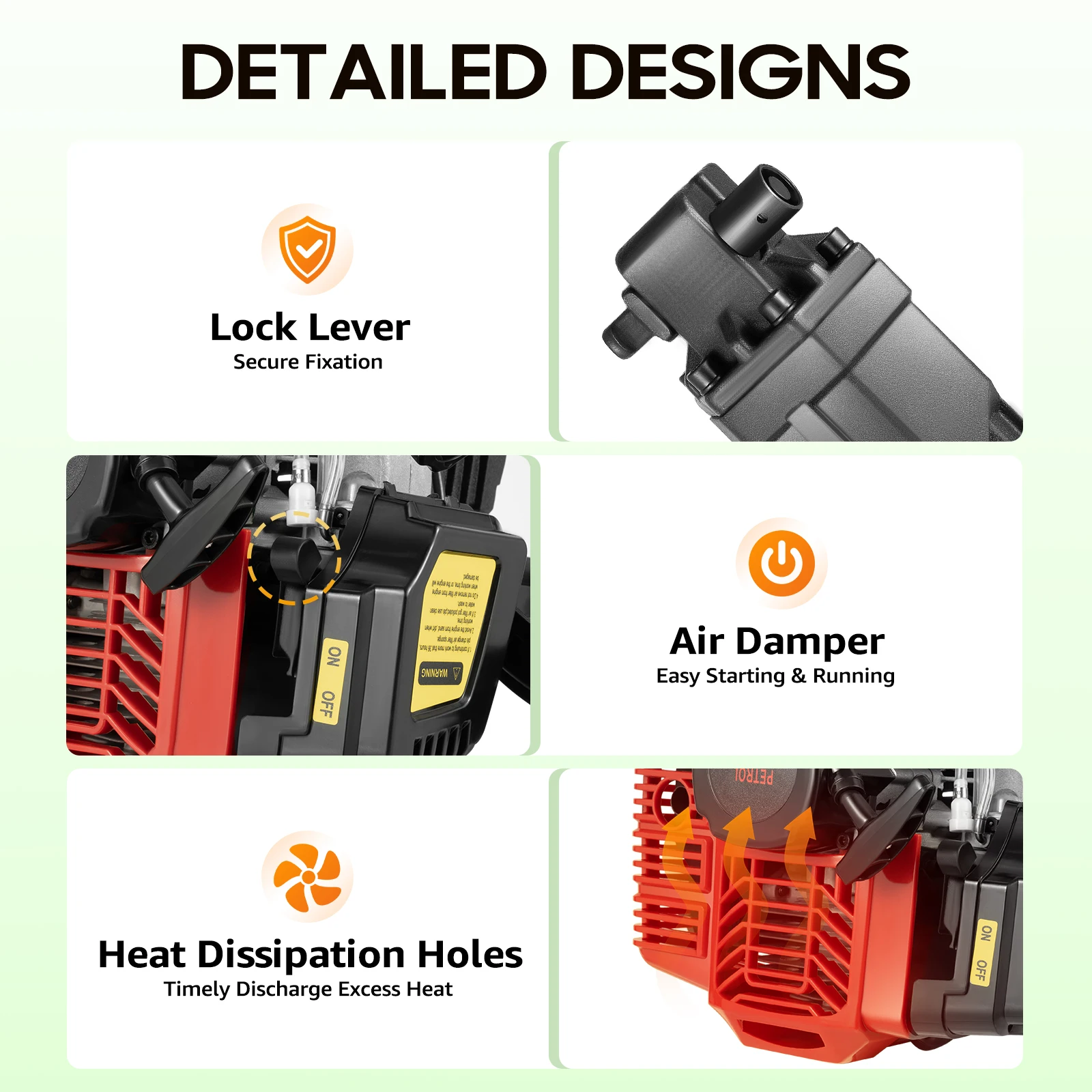

Reliable Heat Dissipation: The built-in cooling fan and compactly distributed heat-release holes achieve prompt heat dispersion, supporting longer service duration for the product.

Guaranteed Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

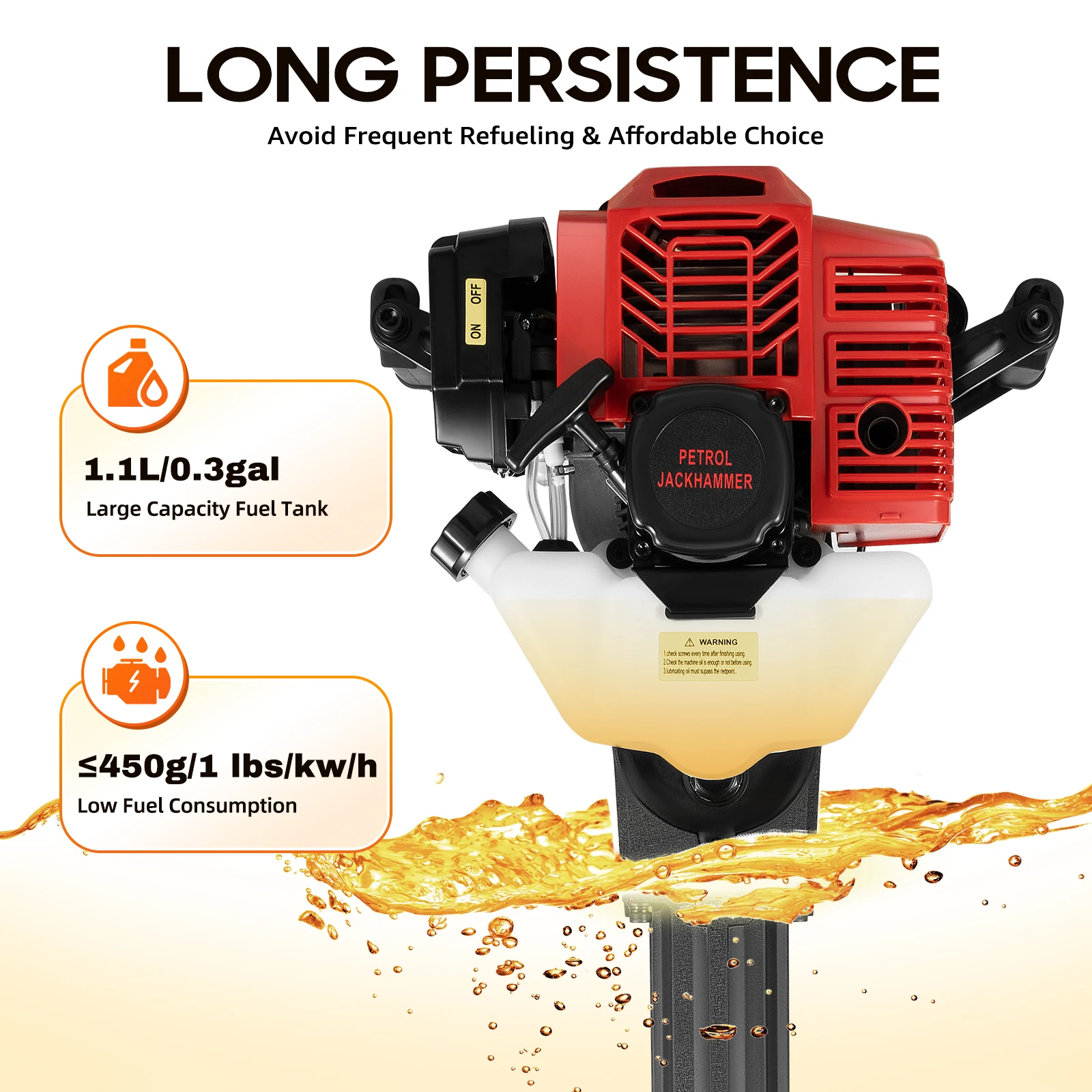

Well-designed Fuel Tank: The fuel tank holds 0.3 gallons, reducing the frequency of refueling. Its clear design provides convenient visibility of fuel levels, supporting timely refills.

Screw Fixing: This product is fixed with round screws, making it have higher sturdiness and stability.

Fine Steel Collet: With a bolt, it can firmly fix the shovel and prevent it from falling.

Functional Filter: This filter fits inside the funnel to screen out impurities in gasoline, ensuring the machine receives cleaner fuel to boost power output.

Application

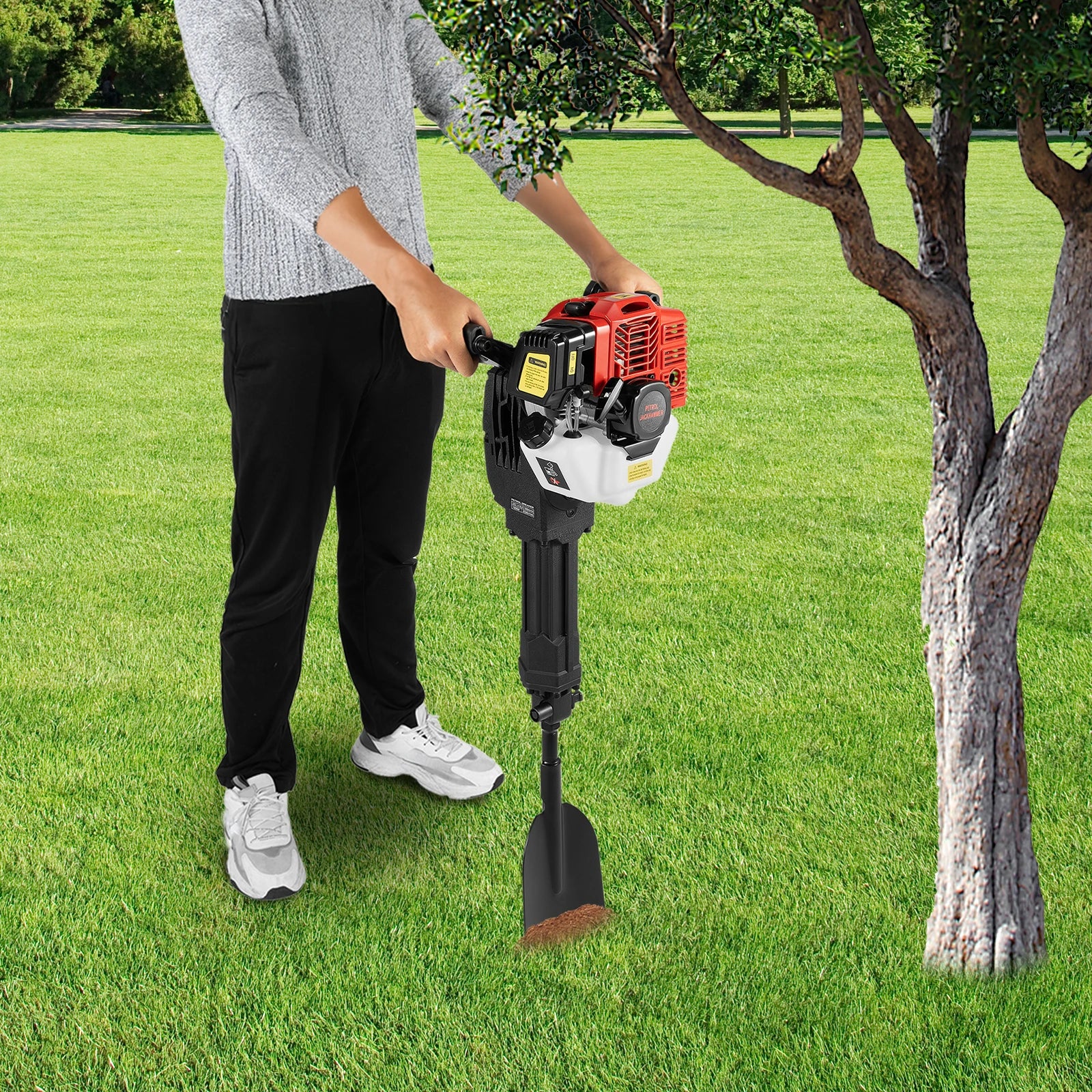

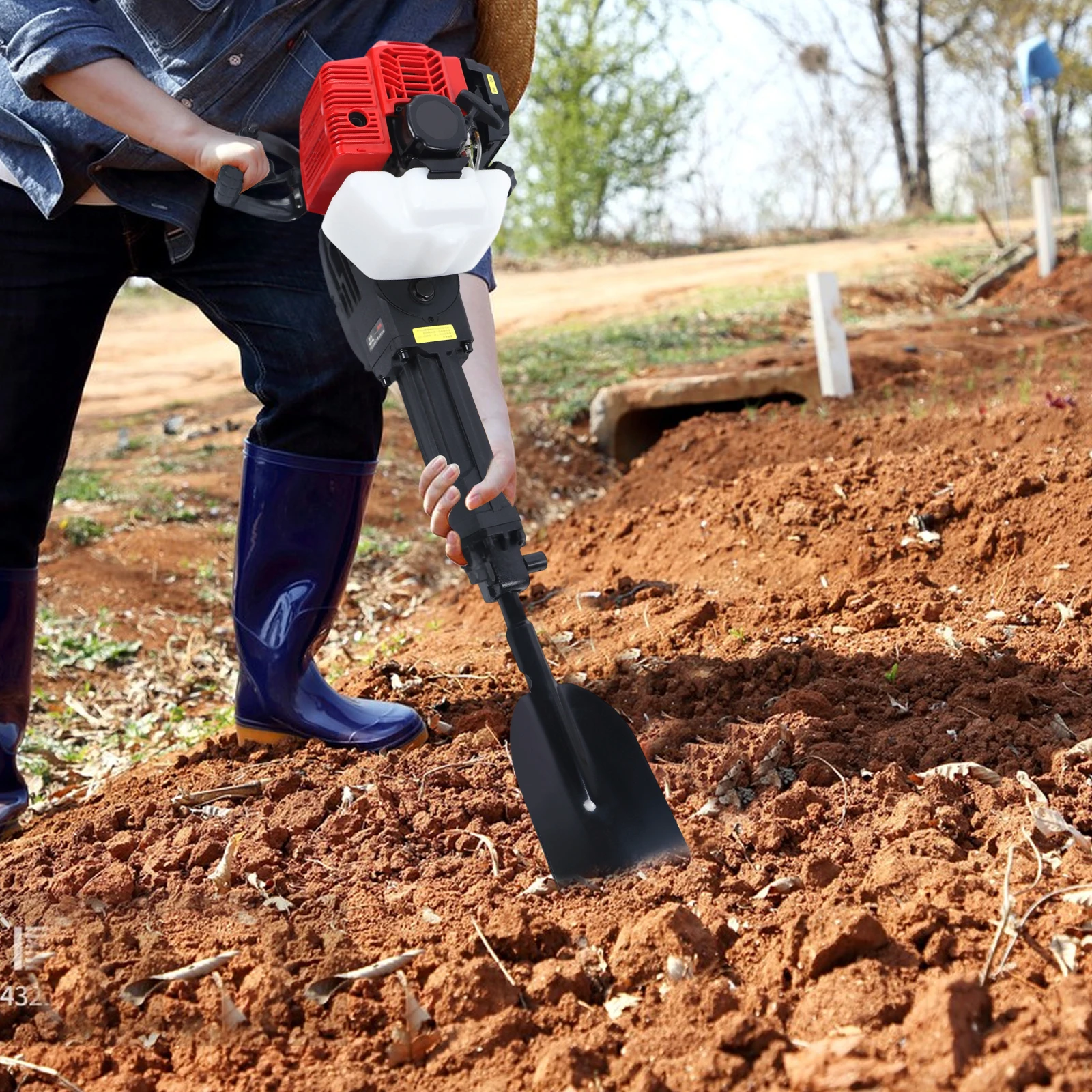

It is great for garden and lawn applications in soil cultivation, tree ball lifting, planting bedding, bulbs, seedlings or fertilizing shrubs, water aeration, weed control & root removal. It is suitable for forestry seedlings, vineyard supports, vegetable planting, etc.

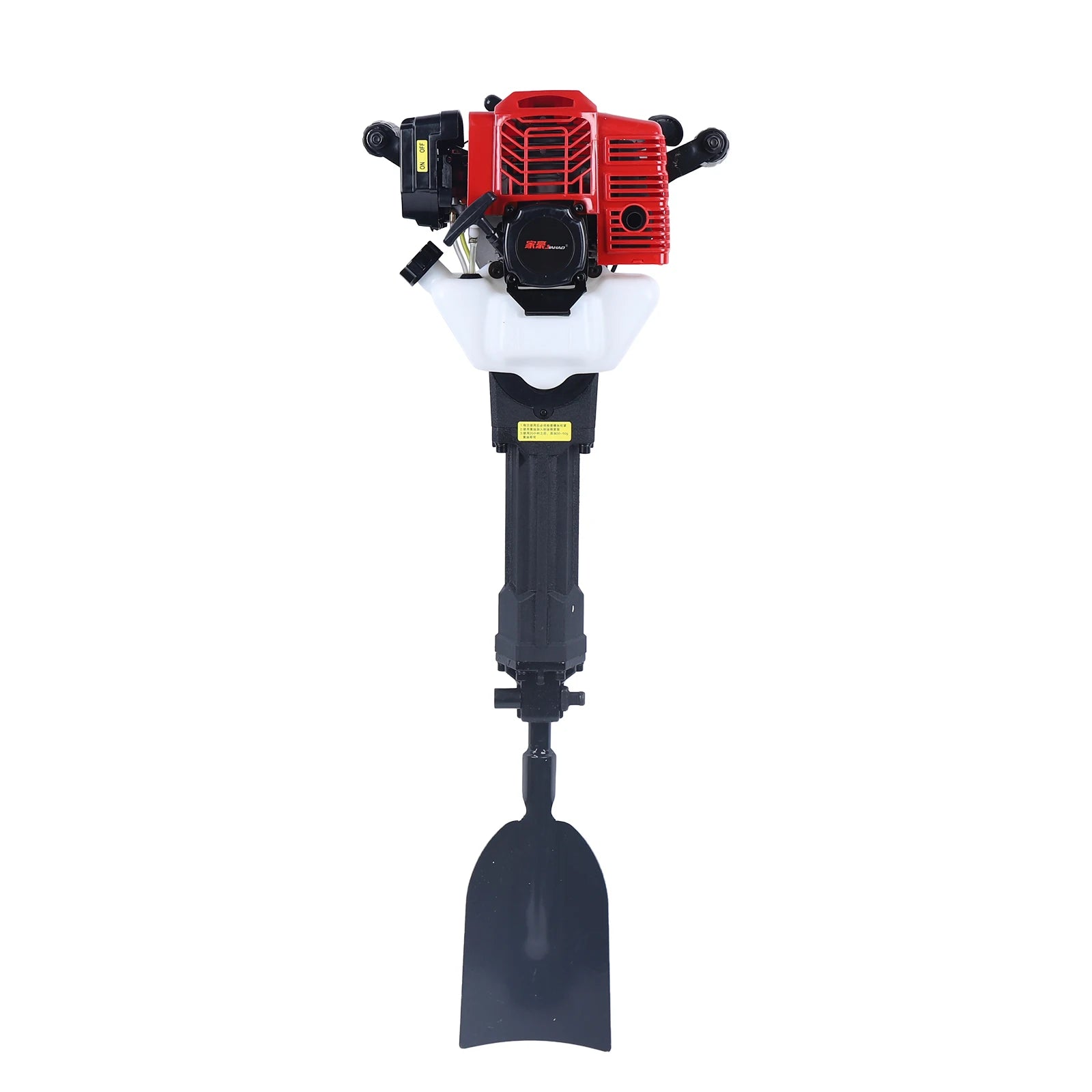

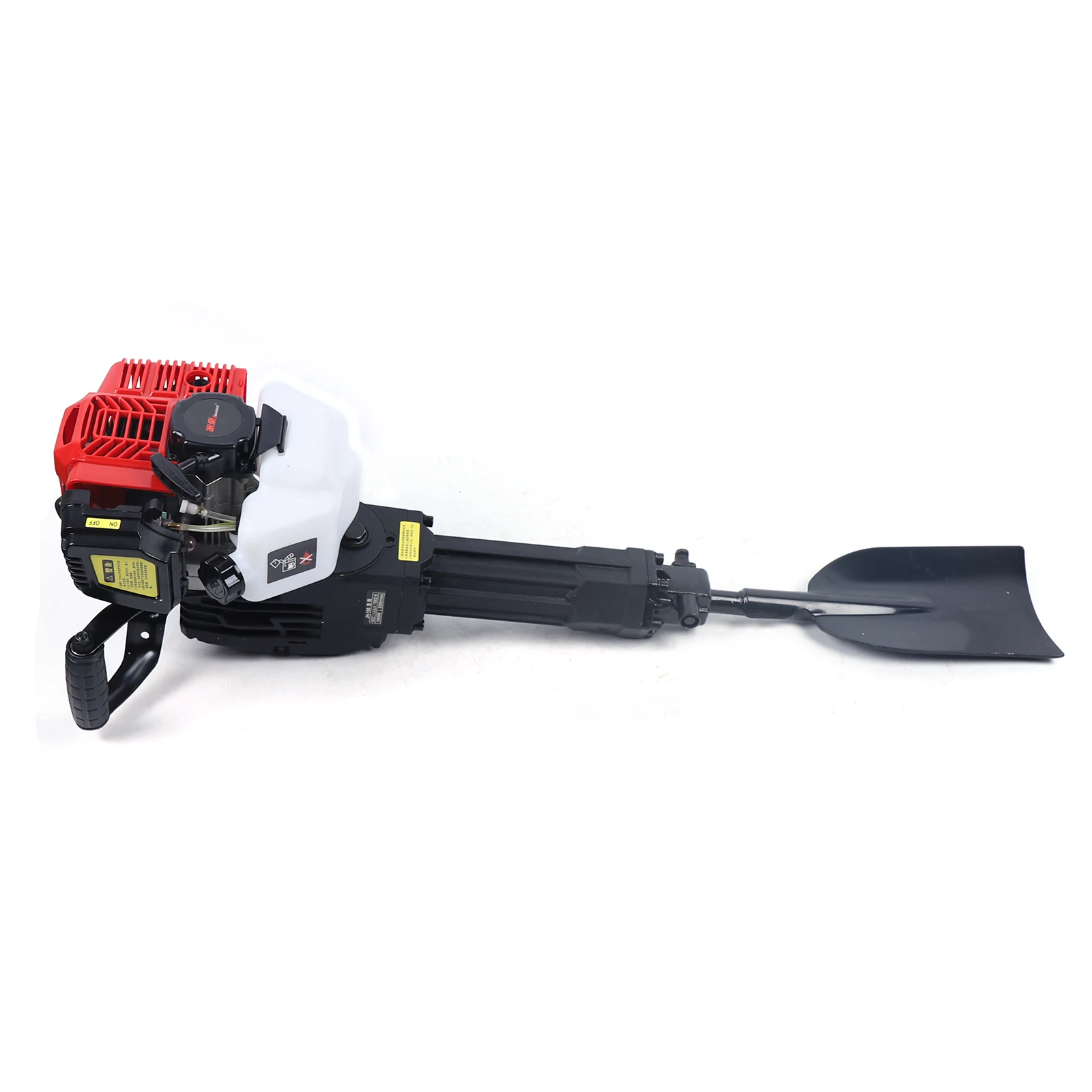

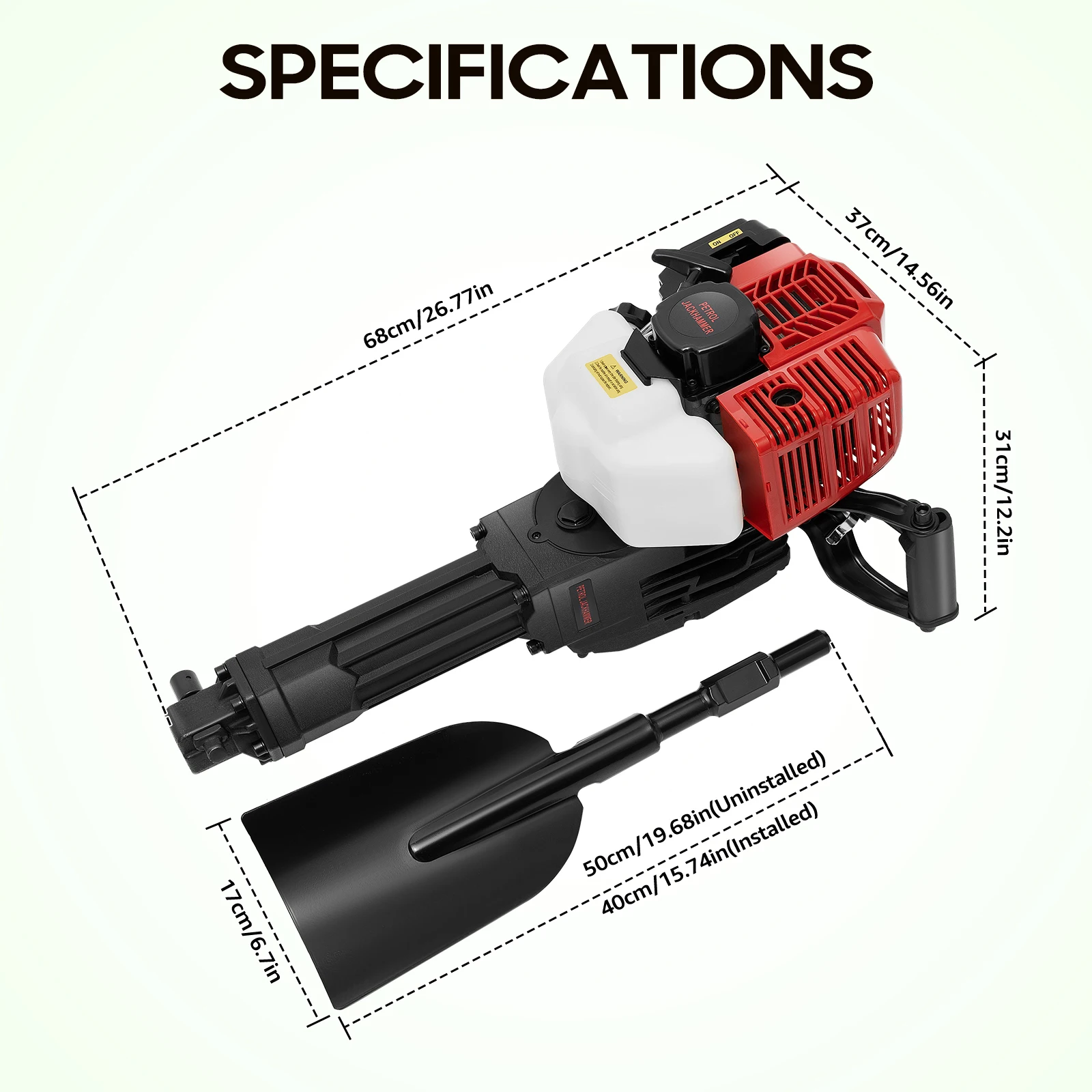

Specifications

Color: Black, Red

Material: Steel, PP

Number of Blows: 1500/min

Fuel Tank Capacity: 1.1L/0.3gal

Emission: 52cc

Mixing Ratio: 25:1 (Gasoline, 2-Stroke Engine Oil)

Engine Type: Single Cylinder, Air-cooled, 2-stroke

Maximum Power and Speed: 1900W/6500rpm

Maximum Torque and Speed: 3.5n.m/5000rpm

Fuel Consumption Rate: ≤ 0.6L/h (0.15gal/h)

Impact Capacity: 20-55J

Noise: About 105dB

Net Weight: 18.6kg/41.01lbs

Engine Size: 44*34mm/1.73*1.34inch

Shovel Size (L*W): 35*16cm/13.78*6.3inch

Machine Body Size (L*H): 38*67.5cm/14.96*26.57inch

Shovel Installation

1. Put in the shovel.

2. Pull out the latch outwards.

3. Rotate the detent latch to lock the shovel head.

4. After installation, check whether it is installed in place.

How to Start

1. Press the oil bubble to supply oil to the oil tank.

2. Close the damper.

3. Pull the starting handle: pull it 3-5 times. When you hear the ignition sound of the machine, push the air valve back. If you do not push it back, the machine will not start.

4. Open the damper: pull the starting handle 1-3 times again to start the machine, and then it can be used normally.

Package Included

1* Machine Body

1* Shovel

1* Funnel

1* Filter

1* Proportioning Oil Tank

1* English Manual

Other Accessories

Notes

1. Please put your safety first, and always operate the machine according to the instructions in the user manual. We recommend wearing appropriate hand and eye protection (not included).

2. This product is only used for soil applications, not for rock, stone, or metal surfaces/debris.

3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
